High Precision Explosion Proof Scales Weighing Indicator Boasts For Hazardous

Rate : A/D Rate 240Hz

Packaging Details : carton packaging

Precision : Display Division Of 100000

Product : LM551Ex Explosion proof Weighing Instrument

Supply Ability : 1,000 units per month

Place of Origin : China

Brand Name : Linmindu

Payment Terms : Payment before delivery

Protection Level : Front Panel IP65

Working Power Supply : DC 24VDC

Model Number : LM551Ex

Communication : RS232，RS485(Modbus-RTU)

Delivery Time : 20 days

Contact Now

LM551EX explosion-proof weighing indicator boasts high precision, stable output and strong anti-interference for hazardous industrial weighing scenarios.

The LM551EX series is an explosion-proof weighing device specifically engineered for flammable and explosive environments, designed to ensure safe and accurate weighing operations in hazardous areas. It adopts specialized explosion-proof components such as explosion-proof enclosures, explosion-proof cables, and explosion-proof sensors, which ensure that the electrical part will not generate high temperature or high pressure when in use in flammable and explosive environments, thereby avoiding safety accidents like explosions or fires.

Product Features

  • 6-digit digital display
  • Supports 1 analog scale platform access and 8 sensors
  • Display division of 100000
  • Standard configuration includes 1 RS232 and 1 RS485
  • Serial ports are equipped with isolation protection and lightning protection
  • Multiple calibration modes
    • Multi point calibration (supports 5 points)
    • weight-free calibration
    • Calibration via MODBUS-RTU remote protocol (only supports 2-point calibration)
  • Options
    • Optional 4~20mA/0~10v (16 bit precision DAC)
    • Optional 4-in-6-out IO
    • Optional Profinet
    • Optional Profibus DP
    • Optional Ethernet/IP
    • Optional TCP/IP
  • Support applications
    • Basic weighing version
    • Material level weighing
    • Preset point control
    • Upper/lower limit material level detection
  • Working power supply: 24VDC DC

Specifications

Project

Parameters

Overall Dimensions

Length x Width x Height: 120 x 75 x 124.4mm

Shell Structure

Aluminum Alloy Shell, Stainless Steel Panel

Installation Method

Dustproof Installation

Protection Level

Front Panel IP65

keyboard

4 Touch Buttons

Accuracy Rate

Display Division Of 100000, A/D Rate Of 240Hz
Weighing

1 Analog Signal, Up To 8 350 Ω Sensors

Working Mode

Comparison Of Preset Points, Upper And Lower Limit Alarms, Weight Control, Reduction Control, Peak Force Measurement, Weighing And Canning, Etc

Working Power Supply

24VDC DC Input, Power Less Than 6W
Display

6-digit, Green, 0.56-inch Digital Display

Communication

RS232,RS485(Modbus-RTU)

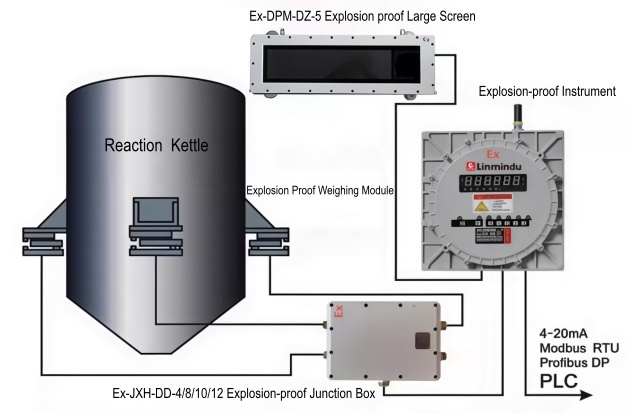

Application case series

High Precision Explosion Proof Scales Weighing Indicator Boasts For Hazardous
